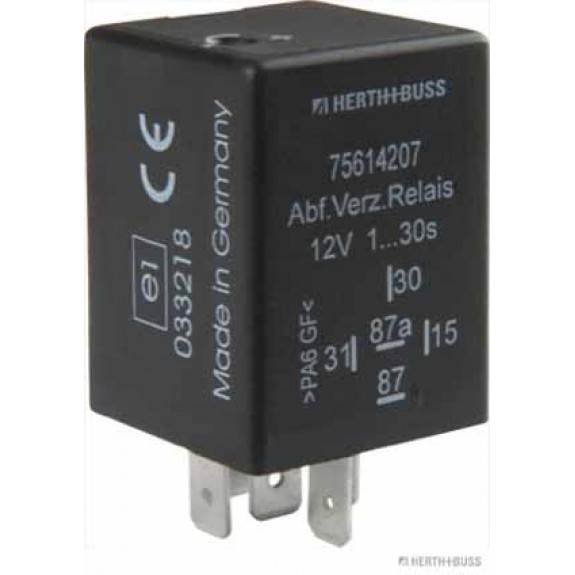

Time Relay

With adjustable time relays with a switch-off delay,
the precise delay time can be set within the selected
time range using a potentiometer. There are five time
ranges to choose from as standard.
Function:
operating voltage at terminal 30. Voltage at terminal
15 means that the relay is switched on immediately. If
the voltage is removed from terminal 15, the relay is
switched off after the set time has elapsed. In a time
relay with diodes, the relay does not consume any
closed current after being switched off due to the
diode circuitry.
Applications:
delayed switch-off for fans and lighting
